Description

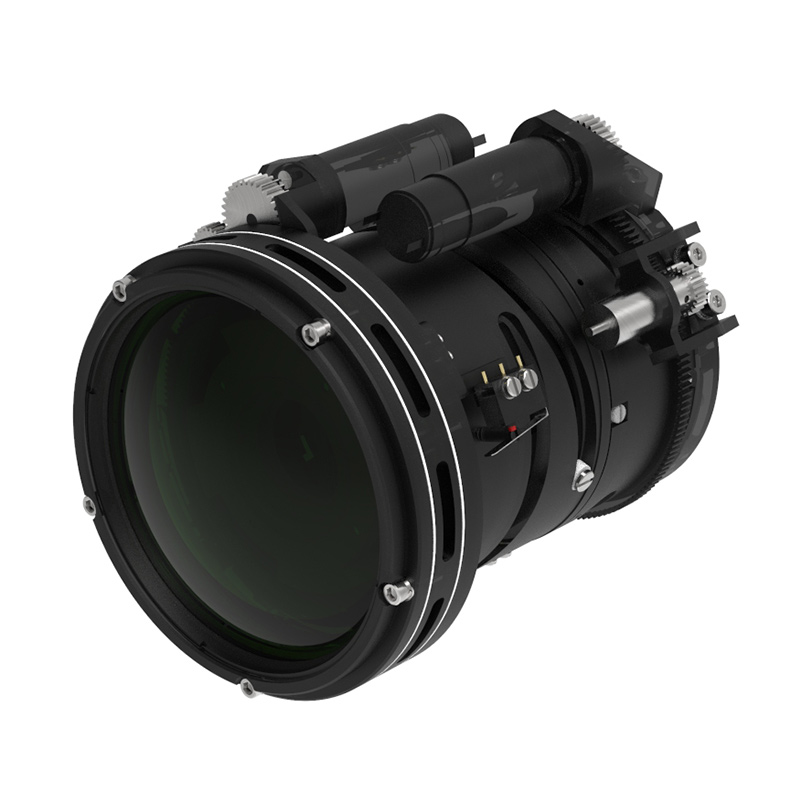

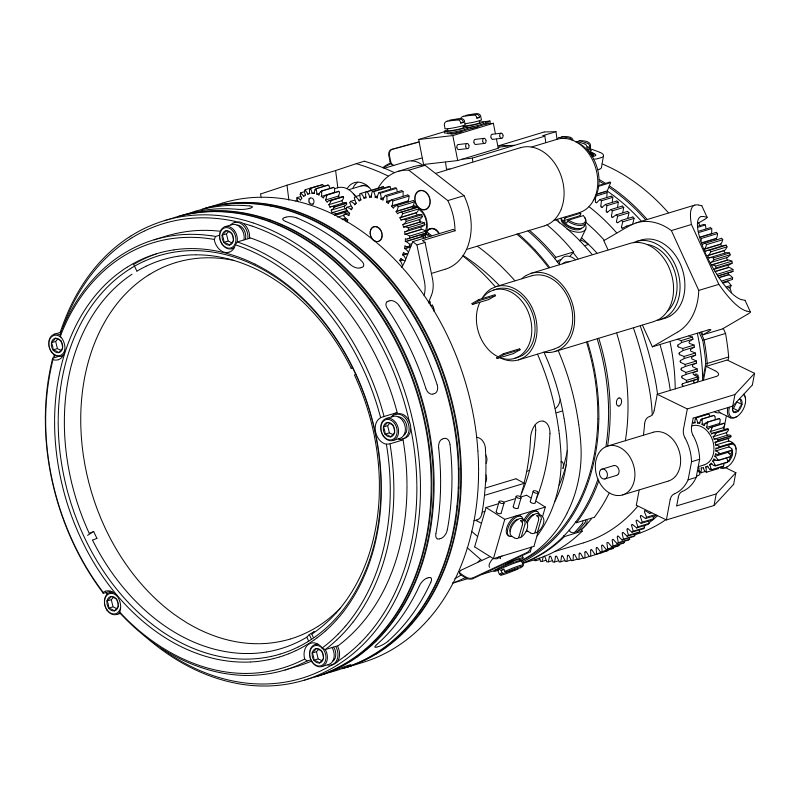

MWIR Continuous Zoom Lens JTMZ15300A
This system is versatile and can be applied in a wide range of scenarios requiring detection, alerting, target searching, and tracking, particularly over medium and short distances.
Size
104 x 94 x 118mm
Specifications
Operating Wavelength: 3μm to 5μm
Detector Resolution: 640 (H) × 512 (V)
Pixel Size: 15μm × 15μm
Focal Length: 15mm to 300mm
Optical Axis Consistency: During zooming from the longest focal length to the shortest focal length, when stopping at any field of view, the optical axis deviation should be no more than 2 pixels in the current field of view.
Full Zoom Range Time: No more than 5 seconds
Imaging Quality: During the zoom process, the image in the center and edge of the field of view should remain clear throughout the entire focal length range, with no significant cold reflection. The optical design must include defocus correction functionality, ensuring uniform image diffusion at infinity focus. The lens must have defocus correction capability.
Relative Aperture: f/4
Operating Temperature: -45°C to +65°C
