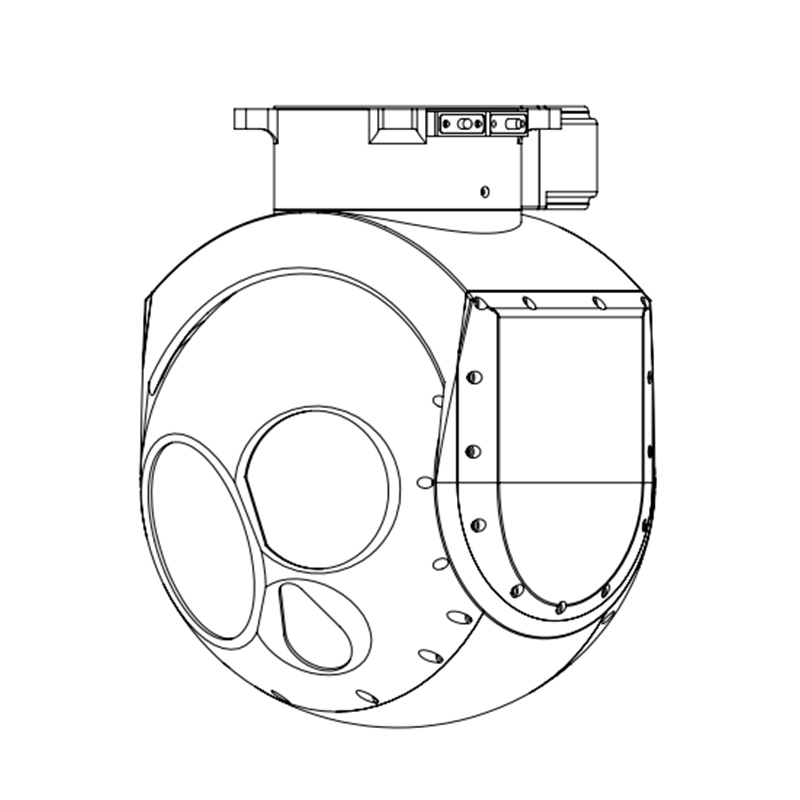

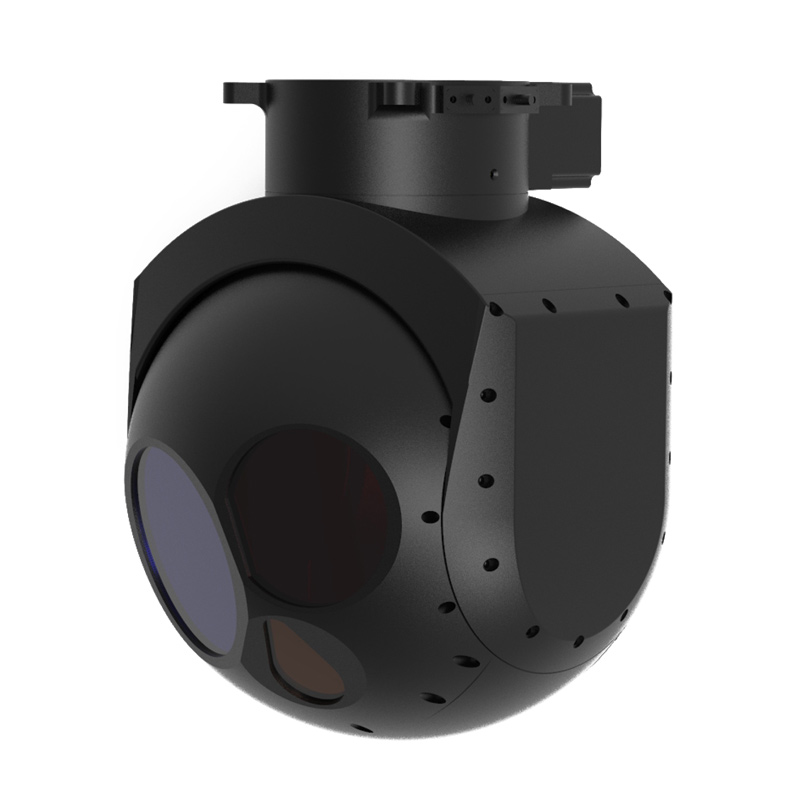

Lightweight Electro-Optical Pod [≤6.5KG]
INSIGHT-198

Main Applications:

lDisaster assessment and early warning

lEnvironmental monitoring

lPower line inspection

lPrevention and control of emergencies

lCustoms and anti-smuggling operations

Φ198 × 255mm

Category:

Description

Lightweight Electro-Optical Pod [≤6.5KG]   INSIGHT-198



Main Applications:

lDisaster assessment and early warning

lEnvironmental monitoring

lPower line inspection

lPrevention and control of emergencies

lCustoms and anti-smuggling operations



Size

Φ198 × 255mm



Performance Parameters

Azimuth: 360° × N

Elevation: -135° to +135°

Tracking Accuracy: ≤1 mrad (2°, 1Hz disturbance RMS)

Stability Accuracy: ≤50 μrad (RMS)

Infrared Operating Wavelength: 3 to 5 μm

Infrared Detector Type: Cooled

Infrared Resolution: 640 × 512

Infrared Focal Length: 16mm to 224mm

continuous zoom

Infrared Field of View: 2.45° × 1.96° to 33.4° × 27°

Visible Light Resolution: 1920 × 1080

Visible Light Focal Length:

6mm to 216mm continuous zoom

Visible Light Field of View:

1.76° × 0.99° to 57.80° × 34.50°

Visible Light Optical Zoom: 36X

Laser Wavelength: 1550 nm

Laser Range: ≥5 km

Laser Accuracy: ±5 m
