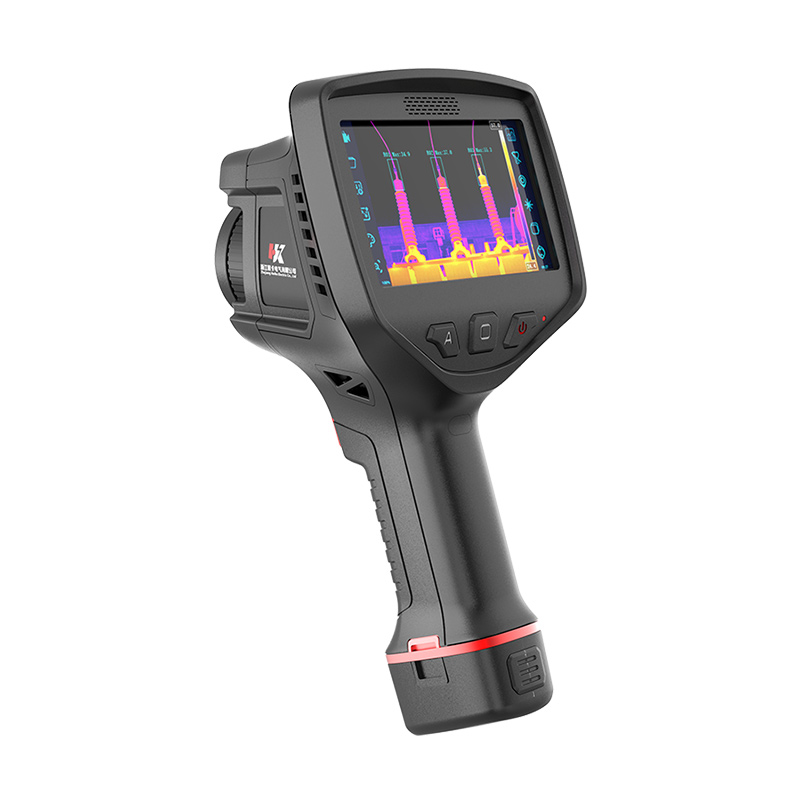

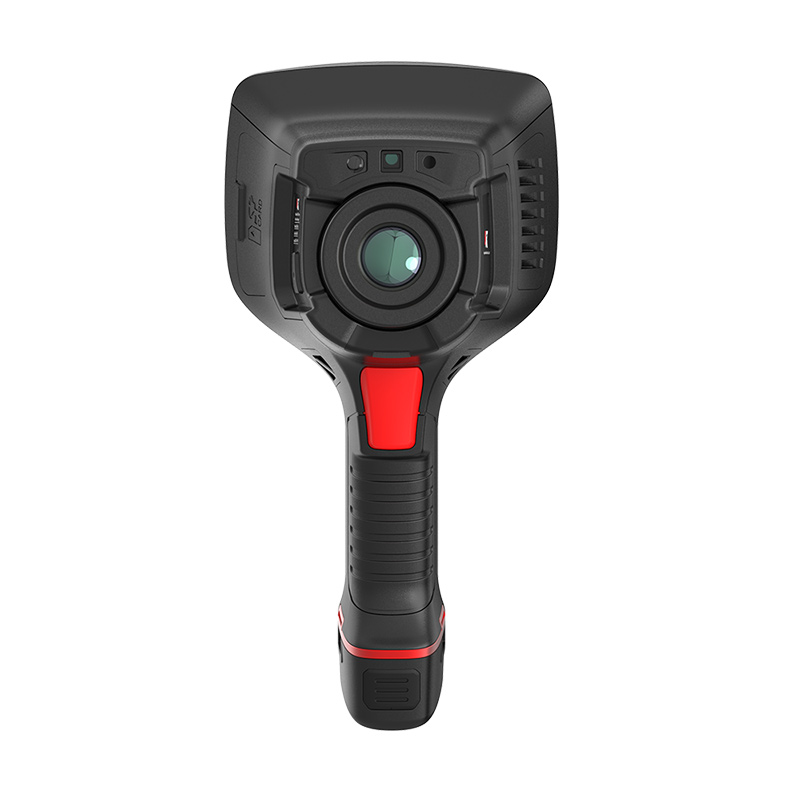

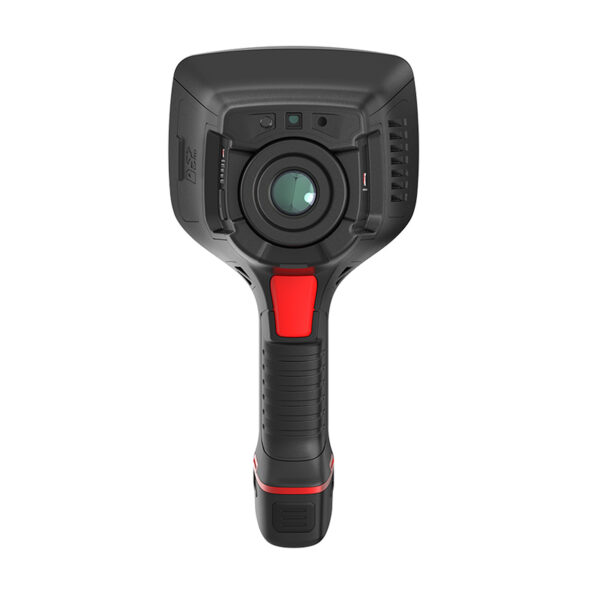

Handheld Thermal Camera

Handheld Thermal Camera

Through a variety of detection functions, including infrared thermal imaging and visible light cameras, it is widely used in real-time intelligent temperature measurement, emergency response, equipment inspection, and forest fire prevention (preventive patrols within forests), among other applications.

260 ×135 ×136mm

Detector Resolution: 384 × 288

Temperature Resolution: <0.06°C

Spatial Resolution: 1.31 mrad

Operating Wavelength: 7.5 to 14μm

Category:

Description

Handheld Thermal Camera



Through a variety of detection functions, including infrared thermal imaging and visible light cameras, it is widely used in real-time intelligent temperature measurement, emergency response, equipment inspection, and forest fire prevention (preventive patrols within forests), among other applications.



Size

260 ×135 ×136mm



Performance Parameters

Detector Resolution: 384 × 288

Temperature Resolution: <0.06°C

Spatial Resolution: 1.31 mrad

Operating Wavelength: 7.5 to 14μm

Temperature Measurement Range:

– Low Temperature Range: -20°C to +150°C

– Medium Temperature Range: 0°C to +410°C

– High Temperature Range: +300°C to +2000°C

Temperature Measurement Accuracy:

– ±2°C (Low Temperature Range)

– ±2% of the reading (Medium/High Temperature Ranges)

Bluetooth Support: For recording and playback through Bluetooth headphones

Wireless Transmission: Real-time image transmission to mobile phones via hotspot

Image preview from SD card via hotspot

Enclosure Rating: IP54

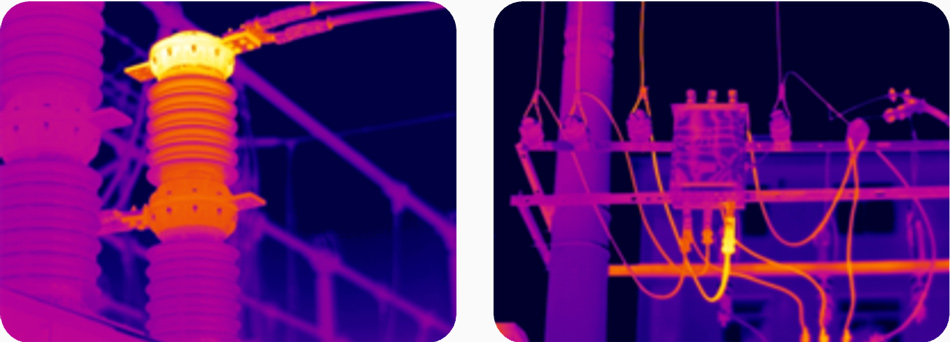

Image Effect
