Description

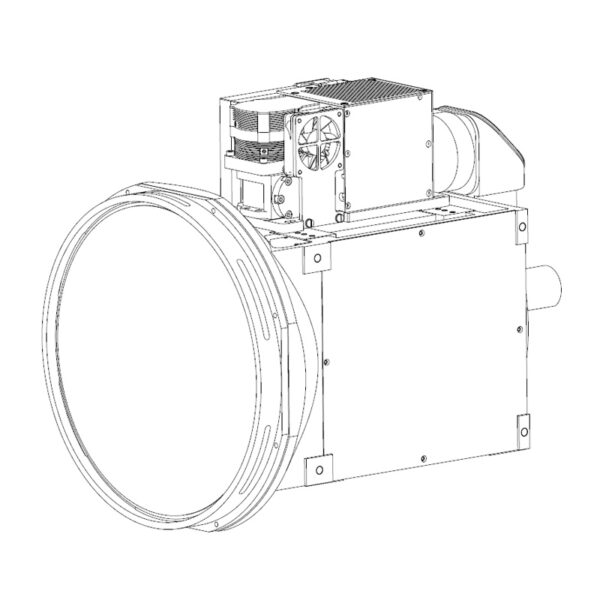

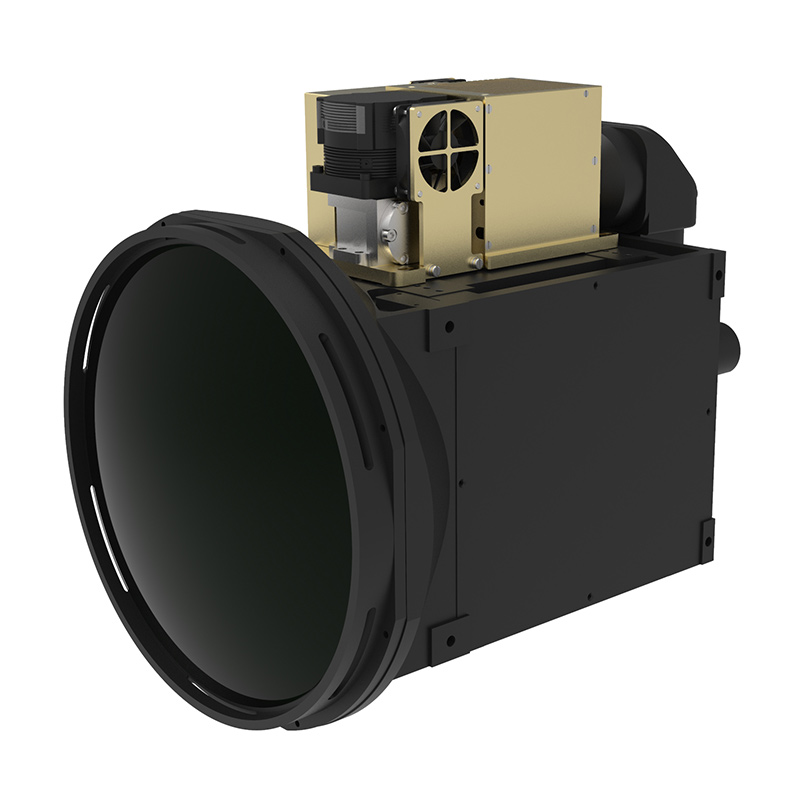

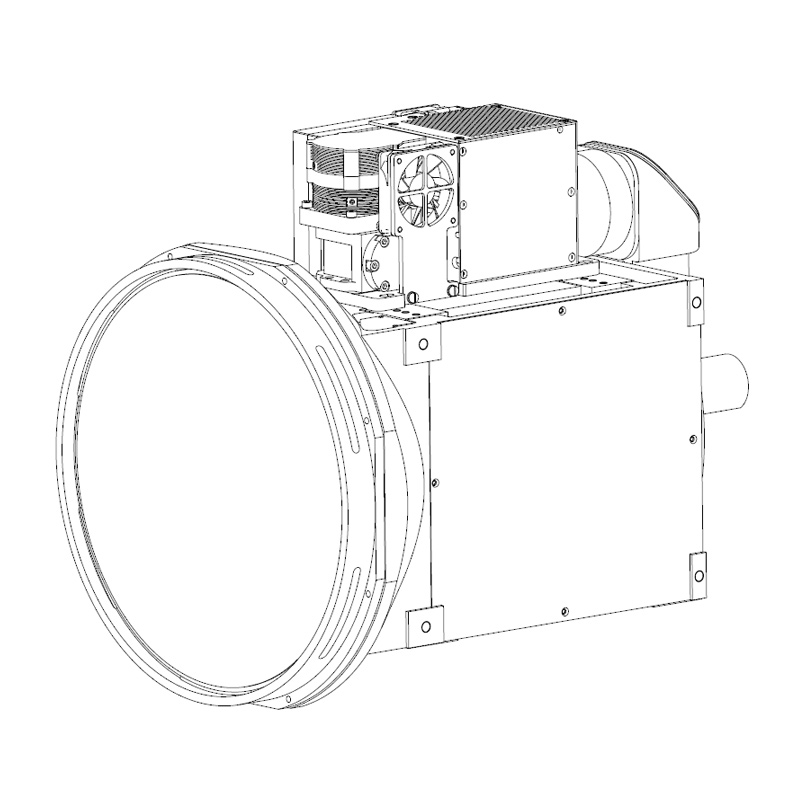

HD Continuous- Zoom Thermal Camera CZK21MP-01
Main Applications:
Primarily used in vehicle-mounted, airborne, and shipborne electro-optical pods, as well as observation and aiming devices.
Size
245 x 297 x 357mm
Performance Parameters
Detector Material: HgCdTe (Mercury Cadmium Telluride)
Operating Wavelength: 3.7μm to 4.8μm
Relative Aperture: f/4
Pixel Size: 15μm × 15μm
Resolution: 1280 (H) × 1024 (V)
Frame Rate: 100Hz, 50Hz, 25Hz
NETD (Noise Equivalent Temperature Difference): ≤35mK
MRTD (Minimum Resolvable Temperature Difference): ≤350mK
Focal Length: 45mm-900mm-1100mm continuous zoom with
accuracy ±3%
Optical Axis Consistency: 2 pixels
Continuous Zoom Time: ≤8 seconds (full range zoom)
Auto Focus Time: ≤2.5 seconds
Cooling Time:
Normal temperature: ≤7 minutes
High temperature: ≤10 minutes
Power Consumption: ≤50W
Operating Temperature: -45°C to +70°C
Power Supply: DC24V ±4V
Communication and External Sync Interface: RS422
Video Interface: CAMRALINK BASE/MEDIUM, switchable between 8-bit and 14-bit
