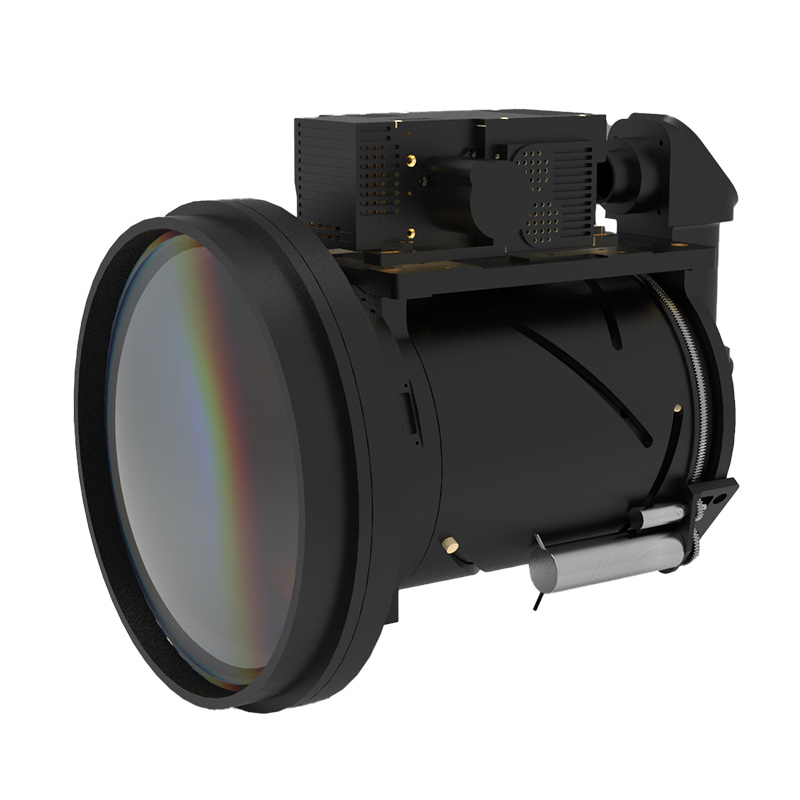

MWIR Continuous- Zoom Thermal Camera
CZ601MP-10

This system is designed for applications that require remote detection, early warning, and target search capabilities over distances beyond the line of sight.

324 × 228 × 292mm

Detector Material: HgCdTe (Mercury Cadmium Telluride)

Operating Wavelength: 3.7μm to 4.8μm

Relative Aperture: f/4

Pixel Size: 15μm × 15μm

Resolution: 640 (H) × 512 (V)

Frame Rate: 25Hz/50Hz

Description

MWIR Continuous- Zoom Thermal Camera CZ601MP-10



This system is designed for applications that require remote detection, early warning, and target search capabilities over distances beyond the line of sight.



Size

324 × 228 × 292mm



Performance Parameters

Detector Material: HgCdTe (Mercury Cadmium Telluride)

Operating Wavelength: 3.7μm to 4.8μm

Relative Aperture: f/4

Pixel Size: 15μm × 15μm

Resolution: 640 (H) × 512 (V)

Frame Rate: 25Hz/50Hz

NETD (Noise Equivalent Temperature Difference): ≤30mK

MRTD (Minimum Resolvable Temperature Difference): ≤250mK

Focal Length: 22.5mm-800mm-950mm continuous zoom

Focal Length Accuracy: Short focal length: ±2%; Long focal length: ±1%

Optical Axis Consistency: 2 pixels

Continuous Zoom Time: ≤7 seconds

(Full-range Zoom)

Auto Focus Time: ≤2.5 seconds

Cooling Time:

– Normal temperature: ≤7 minutes

– High temperature: ≤10 minutes

Power Consumption: ≤40W

Operating Temperature: -45°C to +70°C

Power Supply: DC24V ±4V
