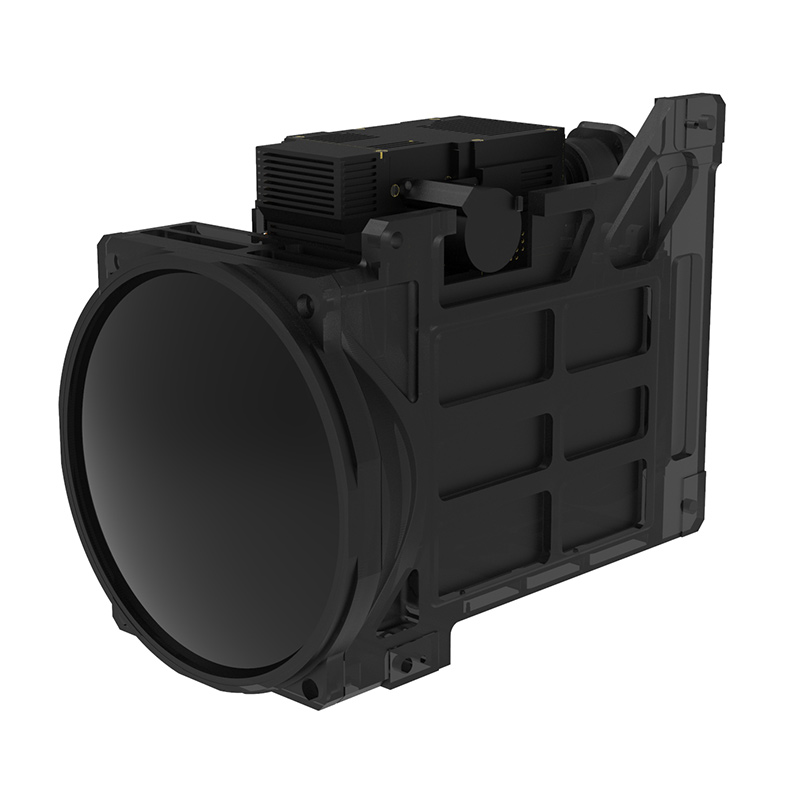

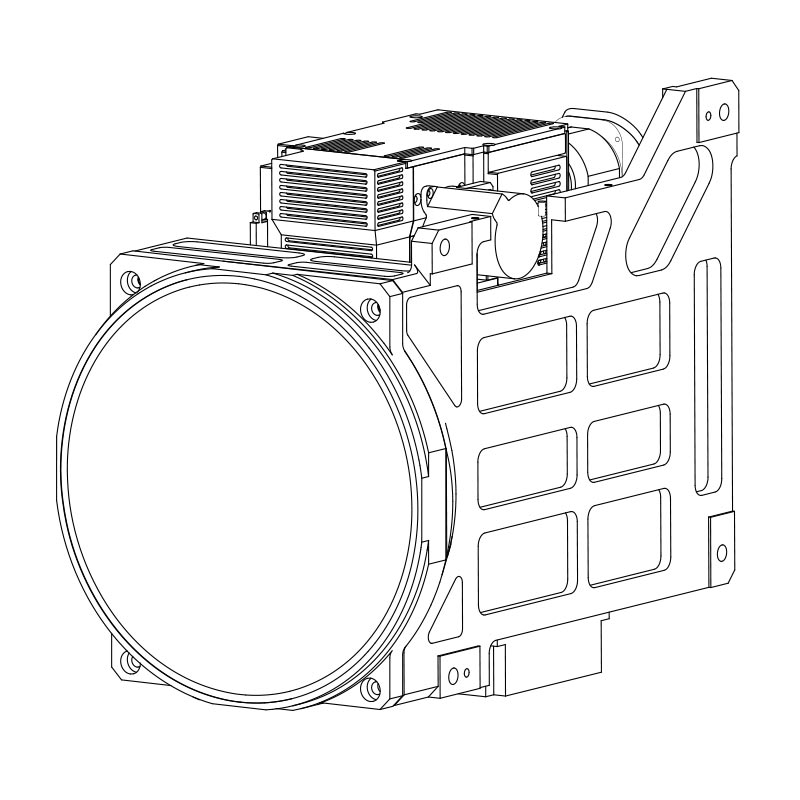

MWIR Continuous- Zoom Thermal Camera CZ601MP-09
Main Applications:
Primarily used in scenarios such as vehicle-mounted, airborne, and shipborne electro-optical pods, observation and aiming devices, and electro-optical detection and tracking systems.
Size
315 x 187 x 237mm
Performance Parameters
Detector Material: HgCdTe (Mercury Cadmium Telluride)
Operating Wavelength: 3.7μm to 4.8μm
Relative Aperture: f/4
Pixel Size: 15μm × 15μm
Resolution: 640 (H) × 512 (V)
Frame Rate: 25Hz/50Hz
NETD (Noise Equivalent Temperature Difference): ≤30mK
MRTD (Minimum Resolvable Temperature Difference): ≤250mK
Focal Length: 22.5mm-687mm-900mm continuous zoom
Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1%
Optical Axis Consistency: 2 pixels
Continuous Zoom Time: ≤7 seconds (full range zoom)
Auto Focus Time: ≤2.5 seconds
Cooling Time:
– Normal temperature: ≤7 minutes
– High temperature: ≤10 minutes
Power Consumption: ≤40W
Operating Temperature: -45°C to +70°C
Power Supply: DC24V ±4V
Communication and External Sync Interface: RS422
Video Interface: GMSL, 8-bit pixel quantization
