Description

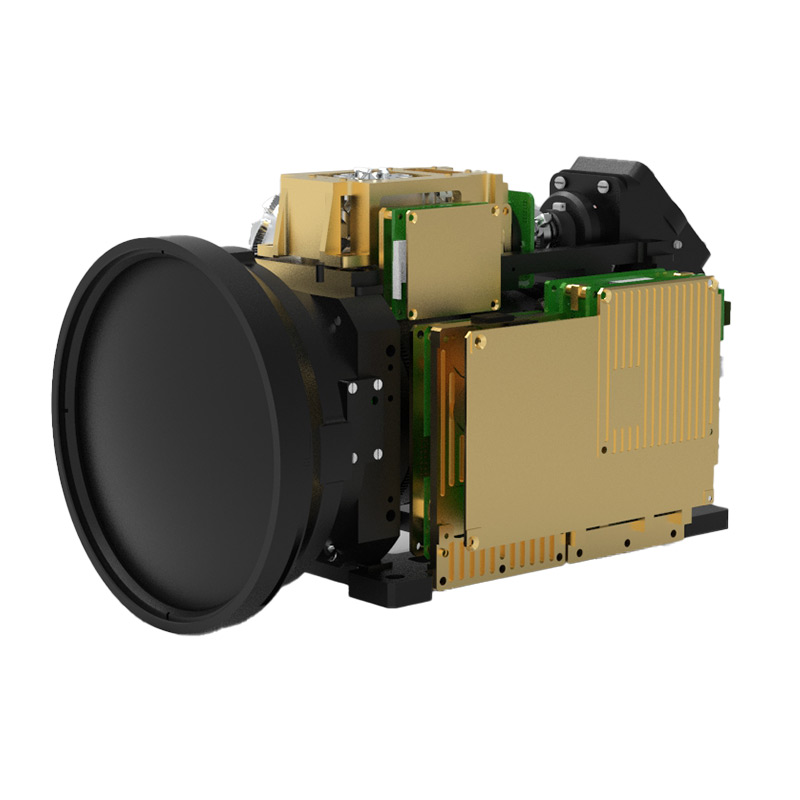

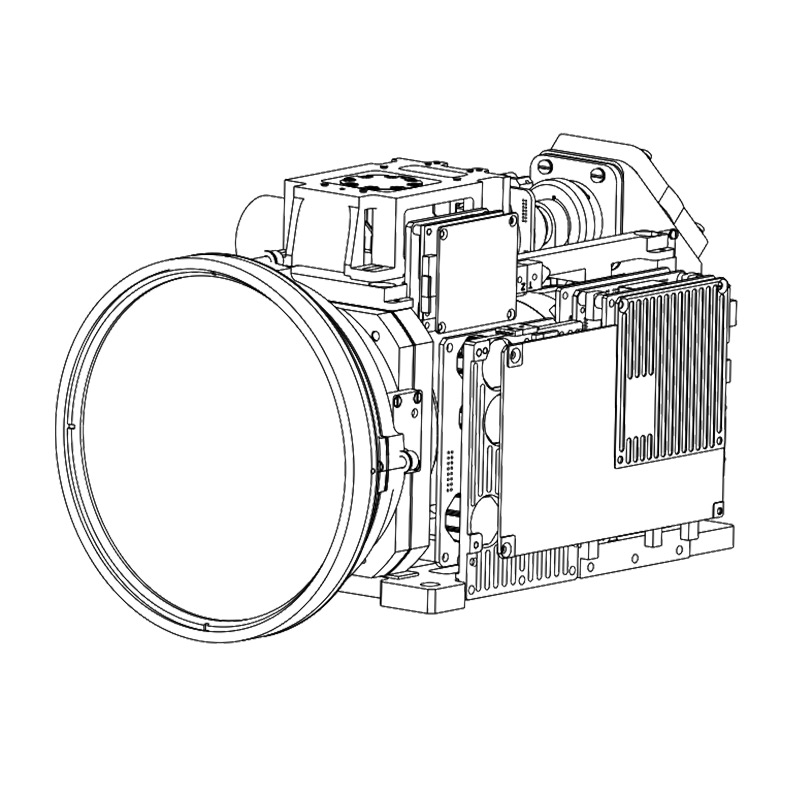

MWIR Continuous- Zoom Thermal Camera CZ601MP-06
This system is designed for use in scenarios that require medium to long-range detection, early warning, and target search capabilities across a range of applications.
Size
159 x 266 x 142mm
Performance Parameters
Detector Material: HgCdTe (Mercury Cadmium Telluride)
Operating Wavelength: 3.7μm to 4.8μm
Relative Aperture: f/4
Pixel` Size: 15μm × 15μm
Resolution: 640 (H) × 512 (V)
Frame Rate: 25Hz/50Hz
NETD (Noise Equivalent Temperature Difference): ≤30mK
MRTD (Minimum Resolvable Temperature Difference): ≤250mK
Focal Length: 30mm to 500mm continuous zoom
Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1%
Optical Axis Consistency: 2 pixels
Continuous Zoom Time: ≤6 seconds (full range zoom)
Auto Focus Time: ≤2.5 seconds
Cooling Time:
– Normal temperature: ≤7 minutes
– High temperature: ≤10 minutes
Power Consumption: ≤40W
Operating Temperature: -45°C to +70°C
Power Supply: DC24V ±4V
Communication and External Sync Interface: RS422
Video Interface: CameraLink 8-bit pixel quantization
