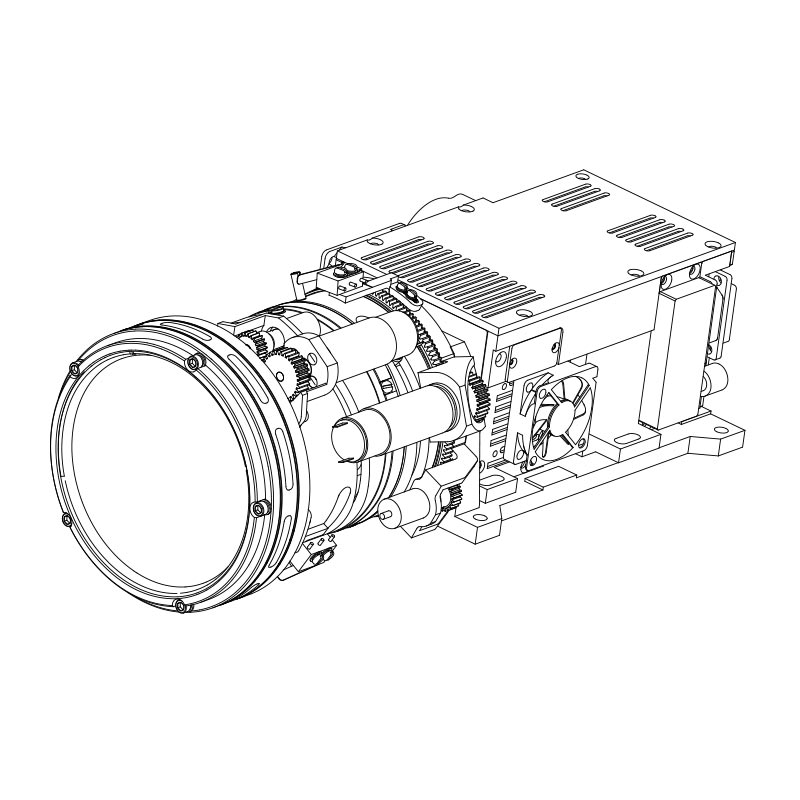

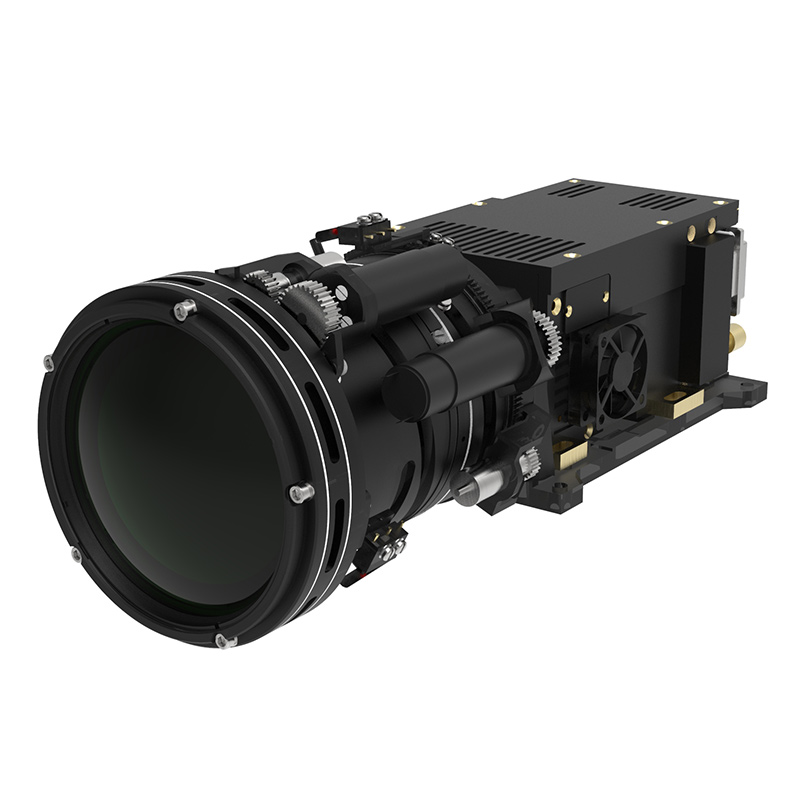

MWIR Continuous- Zoom Thermal Camera
CZ601MT-04

This system is versatile and can be applied in a wide range of scenarios requiring detection, alerting, target searching, and tracking, particularly over medium and short distances.

Detector Material: HgCdTe (Mercury Cadmium Telluride)

Operating Wavelength: 3.7μm to 4.8μm

Relative Aperture: f/4

Pixel Size: 15μm × 15μm

Resolution: 640 (H) × 512 (V)

Frame Rate: 25Hz/50Hz

NETD (Noise Equivalent Temperature Difference): ≤30mK

MRTD (Minimum Resolvable Temperature Difference): ≤250mK

Focal Length: 15mm to 300mm continuous zoom

Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1%

Optical Axis Consistency: 2 pixels

Continuous Zoom Time: ≤5 seconds (full range zoom)

Auto Focus Time: ≤2.5 seconds

Description

MWIR Continuous- Zoom Thermal Camera  CZ601MT-04



This system is versatile and can be applied in a wide range of scenarios requiring detection, alerting, target searching, and tracking, particularly over medium and short distances.



Size

247 x 95 x 114mm



Performance Parameters

Detector Material: HgCdTe (Mercury Cadmium Telluride)

Operating Wavelength: 3.7μm to 4.8μm

Relative Aperture: f/4

Pixel Size: 15μm × 15μm

Resolution: 640 (H) × 512 (V)

Frame Rate: 25Hz/50Hz

NETD (Noise Equivalent Temperature Difference): ≤30mK

MRTD (Minimum Resolvable Temperature Difference): ≤250mK

Focal Length: 15mm to 300mm continuous zoom

Focal Length Accuracy: Short focal length: ±3%; Long focal length: ±1%

Optical Axis Consistency: 2 pixels

Continuous Zoom Time: ≤5 seconds (full range zoom)

Auto Focus Time: ≤2.5 seconds

Cooling Time:  Normal temperature: ≤7 minutes | High temperature: ≤10 minutes

Power Consumption: ≤30W

Operating Temperature: -45°C to +65°C

Power Supply: DC24V ±4V

Communication and External Sync Interface: RS422

Video Interface: HD-SDI,

CameraLink 8-bit pixel quantization
